Equal Tee Fittings & Reducing Tee Fittings Manufacturers, Suppliers & Exporter in Mumbai, India


Table Of Content

Pipe Tee Fittings Manufacturer in India

Fitwel Industries LLP is a leading manufacturer, exporter, and supplier of reducing tee fittings and equal tee fittings in a variety of shapes and dimensions. Also known as 3-way pipe fittings, tee fittings resemble the alphabet ‘T’, wherein two horizontal pipes and one vertical pipe can be attached, manage the direction and mixture of fluids. Pipe Tees are widely used in piping systems to transport two-phase fluid mixtures and are mainly of two types – Equal Tee and Unequal Tee (Reducing Tee).

A tee is the most common pipe fitting, we manufacturer an excellent equal tee pipe fittings & unequal/reducing tee pipe fittings in all sizes, dimensions, & having features like Strong Construction, Easy to move, Perfect functioning which are an excellent choice for most Industrial fittings applications.
Fitwel Industries LLP also manufactures not-so-regular buttweld lateral tee in stainless steel, nickel alloys, carbon steel, and alloy steel grades. Depending on our customer requirements, we can manufacture and offer straight tees and reducing tees in various grades including 202, 304/304L, 904L, 316/316L, Duplex 2205, Alloy 20, Cupro Nickel, Monel Alloy 400, Inconel Alloy 625, Inconel Alloy 600, Hastelloy Alloy C276, and also in various Aluminium Grades.

We are engaged in offering a superior quality Tee Pipe Fittings that is manufactured using high-grade raw material in compliance with industry norms. It comes in two types – Equal Teel Pipe Fittings and Unequal Tee Pipe Fittings. We are renowned as the most popular enterprises in this industry, offering a high quality Butt Weld Fittings. When the size of the branch is the same as header pipes, the equal tee is used and when the branch size is less than that of header size, the reduced tee is used. The three sizes of a tee are End x End x Center. So if you want a tee that is 1’’ on both ends and 3/4 in the center it would be 1’’ x 1’’ x 3/4’’. Stainless steel tees, carbon steel tees, and special grade tees are widely supplied by us to many industries such as power generation, petrochemical, shipbuilding, paper manufacturing, chemical, pharmaceutical, and fabrication.

What is Pipe Tee Fittings?

Pipe Tee Fittings is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the mainline. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line. Pipe Tee Fittings are widely used as pipe fittings.

It is available with all female buttweld form or with opposed solvent weld sockets and a side outlet with female threads. Our Equal Tee fittings resemble the alphabet' T ', where two horizontal and one vertical pipe can be attached.
The Pipe Tee Fittings helps to connect auxiliary equipment to a pipe as it is welded on both sides of the pipe, leaving the branch open for branch off. We provide ANSI B16.9 Pipe Tee Fittings which are designed in compliance with international quality standards. Tee is used in construction, electricity, shipbuilding and chemical Industry. They are available in materials like Stainless Steel Tee, Hastelloy Tee, Inconel Tee, Monel Tee, Duplex Steel Tee, SMO 254 Tee Fittings etc. The features of Buttweld Tee Fittings are:-

  • Multi-point seal
  • Metal locking feature
  • Fully reusable fitting
  • What Are The Types Of Pipe Tee Fittings?

    A pipe tee is used for distributing or collecting the fluid from the run pipe. It is a short piece of pipe with a 90-degree branch at the center. There are two types of Tee used in piping, Equal / Straight Tee, and Reducing / Unequal Tee.

    There are mainly two types of pipe tee fittings used in piping which are available in the market i.e. (i)Equal Tee/ Straight Tee And (ii) Reducing Tee/ Unequal Tee.

    What is Equal Tee Fittings?

    Equal Tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. The equivalent tee (or straight tee) is utilised as the branch has the same distance across as the run pipe. There are straight pipe tees which have the same size openings.
    An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter.

    A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter. An equal tee is, therefore, used to connect two pipes of the same nominal diameter. Equal tees are available in sizes from half an inch to 48 inches (or larger) and in seamless and welded execution (seamless up to 24 inches, welded for tee sizes above 24 inches).

    The equivalent tee (or straight tee) is utilised as the branch has the same distance across as the run pipe. Equal Tee are equipped for taking care of any high or low weight stream of fluid through it. The equal tee are with the same channel and outlet sizes, however, customers can profit from us “decreasing” tees too that have maybe a couple closes with various in measurement, this is called an equal tee. Because of their dimensional contrast, these tee fittings help with the ability to control the volume when required. Our scope of Equal Tee and Equal Cross are impeccably built utilising most recent innovation and are generally utilised as a part of differing piping frameworks crosswise over commercial ventures. Faultlessly built to flawlessness utilising most recent machines and innovation, these pipe fittings are broadly utilised as a part of a large number of commercial ventures far and wide. Durable in quality, these pipe fittings are accessible at competitive prices.

    What Are The Features Of Equal Tee?

  • There are three female openings in a ‘T’ formed pipe tee.
  • There are straight pipe tees which have the same size openings.
  • Equal tee make them open of various size and two openings of the same size.
  • There are sterile equal tees which are utilised as a part of waste lines.
  • These sort of equal tees have a bent branch which is intended for a wipe outfitting. They are utilised to avoid hindrance of waste.
  • An equal tee has dragged to attach the fitting to a divider or stud.
  • An equal tee utilises pressure fittings on two or more finishes.
  • An equal tee has a strong opening. This opening is utilised as a part of conjunction with a strong fitting for a get out an opening on a drain pipe.
  • ASME B16.9 Buttweld Equal/Straight Tees (NPS 1/2-48) Dimensions

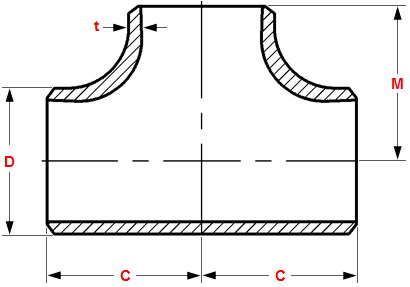

    Equal Tee Dimensions
    NPS O.D.
    D
    Center to End
    C
    Center to End
    M
    1/2 21.3 25 25
    3/4 26.7 29 29
    1 33.4 38 38
    42.2 48 48
    48.3 57 57
    2 60.3 64 64
    73 76 76
    3 88.9 86 86
    101.6 95 95

    Dimensional Tolerances of ASME B16.9 Buttweld Equal/Straight Tees

    Nominal Pipe Size

    1/2 to 2½

    3 to 3½

    4

    5 to 8

    10 to 18

    20 to 24

    26 to 30

    32 to 48

    Outside Dia
    at Bevel (D)

    +1.6
    -0.8

    1.6

    1.6

    +2.4
    -1.6

    +4
    -3.2

    +6.4
    -4.8

    +6.4
    -4.8

    +6.4
    -4.8

    Inside Dia at End

    0.8

    1.6

    1.6

    1.6

    3.2

    4.8

    +6.4
    -4.8

    +6.4
    -4.8

    Center to End (C / M)

    2

    2

    2

    2

    2

    2

    3

    5

    Wall Thk (t)

    Not less than 87.5% of Nominal Wall Thickness

    Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.

    What is Reducing Tee Fittings?

    Reducing pipe tees(Unequal Tee) are also used to reduce delivery lines in order to feed icemakers and other applications which require a reducing tee fitting. Reducing tee is another type of pipe tee used in pipe and tube fittings.
    In other words, reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run. This type of pipe fitting can also consider size reduction from one of the run ports to the other. Reducing tee usually provides smooth flow paths and there is no turbulence or entrapments.

    Reducing Tee Fittings is another type of pipe tee used in pipe and tube fittings. Pipe Tees are available two popular forms—have all outlets of the same size or they can be reducing tees in which they are with a combination of different outlet sizes.
    Reducing tee, like all pipe tees, is in the shape of T with two ends of equal size and the third one slightly smaller. In other words, reducing tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run. This type of pipe fitting can also consider size reduction from one of the run ports to the other.

    For different applications in various industries, the reducing tees are available in many various combinations of sizes and configurations. Used for waste, water supply. Used for water, drain pipe, gas, oil etc. Apart from the standard sizes, other unusual combinations of size can also be attained using component parts of tees, reducing tee and reducers.

    What Are The Features Of Reducing Tee?

  • Standards.
  • Long service life.
  • Corrosion resistance.
  • Good impact strength.
  • Light weight and easy to installation.
  • Size.
  • Colors.
  • Finish.
  • ASME B16.9 Buttweld Unequal/Reducing Tees (NPS 1/2-48) Dimensions

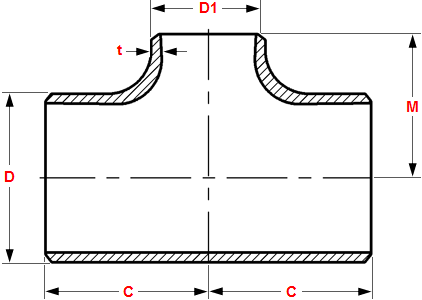

    Reducing Tee Dimensions
    NPS O.D.
    D
    O.D.
    D1
    Center to End
    C
    Center to End
    M
    3/4 - 1/2 26.7 21.3 29 29
    1 - 1/2 33.4 21.3 38 38
    1 - 3/4 33.4 26.7 38 38
    1¼ - 1/2 42.2 21.3 48 48
    1¼ - 3/4 42.2 26.7 48 48
    1¼ - 1 42.2 33.4 48 48
    1½ - 1/2 48.3 21.3 57 57
    1½ - 3/4 48.3 26.7 57 57
    1½ - 1 48.3 33.4 57 57
    1½ - 1¼ 48.3 42.2 57 57
    2 - 3/4 60.3 26.7 64 44
    2 - 1 60.3 33.4 64 51
    2 - 1¼ 60.3 42.2 64 57
    2 - 1½ 60.3 48.3 64 60
    2½ - 1 73 33.4 76 57
    2½ - 1¼ 73 42.2 76 64
    2½ - 1½ 73 48.3 76 67
    2½ - 2 73 60.3 76 70
    3 - 1¼ 88.9 42.2 86 70
    3 - 1½ 88.9 48.3 86 73
    3 - 2 88.9 60.3 86 76
    3 - 2½ 88.9 73 86 83
    3½ - 1½ 101.6 48.3 95 79
    3½ - 2 101.6 60.3 95 83
    3½ - 2½ 101.6 73 95 89
    3½ - 3 101.6 88.9 95 92
    4 - 1½ 114.3 48.3 105 86
    4 - 2 114.3 60.3 105 89
    4 - 2½ 114.3 73 105 95
    4 - 3 114.3 88.9 105 98
    4 - 3½ 114.3 101.6 105 102

    Dimensional Tolerances of ASME B16.9 Buttweld Unequal/Reducing Tees

    Nominal Pipe Size

    1/2 to 2½

    3 to 3½

    4

    5 to 8

    10 to 18

    20 to 24

    26 to 30

    32 to 48

    Outside Dia
    at Bevel (D)

    +1.6
    -0.8

    1.6

    1.6

    +2.4
    -1.6

    +4
    -3.2

    +6.4
    -4.8

    +6.4
    -4.8

    +6.4
    -4.8

    Inside Dia at End

    0.8

    1.6

    1.6

    1.6

    3.2

    4.8

    +6.4
    -4.8

    +6.4
    -4.8

    Center to End (C / M)

    2

    2

    2

    2

    2

    2

    3

    5

    Wall Thk (t)

    Not less than 87.5% of Nominal Wall Thickness

    Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.

    Pipe Tee Fitings Manufacturing Process?

    Cold forming And Hot Forming or Double Seam Welding process both are the most used manufacturing process for seamless & ERW buttweld pipe tee fitings.

    ASME B16.9 Pipe Tee Fittings Specification:

    Size : 1/2"NB TO 48"NB IN

    Standards : ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.

    Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

    Type : Seamless / ERW / Welded / Fabricated

    Form : Equal Tee, Unequal Tee, Barred Tee, Lateral Tee, Reducing Tee.


    ASME B16.9 Pipe Tee Fittings Material & Grades :

    Stainless Steel Buttweld Tee : ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

    Duplex & Super Duplex Steel Buttweld Tee : ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

    Carbon Steel Buttweld Tee : ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

    Alloy Steel Buttweld Tee : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

    Nickel Alloy Buttweld Tee : ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
