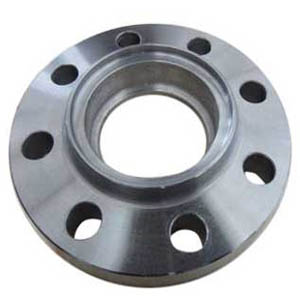

Fitwel Industries LLP is the recognized Manufacturer, Supplier, and Exporter of Alloy Steel ASME B16.5 Socket Weld Flanges / SWRF Flanges, Class 150 Socket Weld Flanges, Class 300 Socket Weld Flanges, Class 900 Socket Weld Flanges, Class 1500 Socket Weld Flanges, Class 2500 Socket Weld Flanges, pn16 Socket Weld flange. A Alloy Steel SWRF Flange is very similar in appearance to a Slip-On flange, but the main difference is the socket weld flange is bored out to match a specific pipe inside diameter. This flange is counter bored to accept the pipe before being fillet welded. The bore of the pipe and flange are both the same therefore giving good flow characteristics. Alloy Steel Socket Weld Flanges are highly durable, corrosion-resistant, and reliable.

Call@-022-23829256. We are leading ISO certified manufacturers, exporter & suppliers of Alloy Steel Socket Weld flanges, Alloy Steel Threaded flange, Alloy Steel Screwed flanges in Mumbai, Pune, Chennai, Ahmedabad, Faridabad, Delhi, Bangalore, India.

Alloy Steel A182 F1 / F5 / F9 / F11 / F22 / F91 Socket Weld Flanges are used only for high pressure and temperature applications. This creates a smooth bore with the proper welding and grinding. Socket Welding Flanges were initially developed for use on smaller sizes of pipe at higher pressure ratings. These Flanges are most durable and manufacture to fit in different sizes of Pipes. Engineers & World's Best Project Consultants use these Flanges in Machined Components, we have supplied Flanges to companies involved in Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Utilities and Transportation, and Industrial Construction.

ASME B16.5 Socket Weld Flanges Specification :

Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

BS : BS4504 , BS4504, BS1560, BS10

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673

ANSI B16.47 Socket Weld Flanges Material & Grades:

Alloy Steel Socket Weld Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

All Classes Dimensions of Socket Weld Flange

Spectacle flange dimension
NPS 1/2 - ID = 22.3 - F = 9.5
CLass 150 300 600 900 1500 2500
DIA
A
30 38 38 ... 38 ...
DIA
D
90 95 95 ... 120 ...
THK
B
9.6 12.7 14.3 ... 22.3 ...
11.2 14.3 20.7 ... 28.7 ...
DIA
G
35.1 35.1 35.1 ... 35.1 ...
DIA
K
60.3 66.7 66.7 ... 82.6 ...
H 14 21 22 ... 32 ...
15.6 22.6 28.4 ... 38.4 ...
NO.
L
4 4 4 ... 4 ...
DIA
L
15.9 15.9 15.9 ... 22.2 ...
Stud Bolts Diameter x Length
DIA
(in)
1/2 1/2 1/2 ... 3/4 ...
Len
mm
55 65 75 ... 110 ...
Other Diameters
NPS 3/4 1 2

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • The length of the Stud Bolt does not include the height of the chamfers (points).
  • ID2 = Depending on the wall thickness of the pipe, must be specified by the purchaser.

  • Other Related Products:

    We Supply Socket Weld Flanges For Various Application Industry Like :

    Oil & Gas Industries

    Petrochemical Industries

    Engineering Industries

    Chemical Industries

    Sugar Industries

    Power Generation Industries

    Fertilizers Industries

    Food Processing Industries


    FREQUENTLY SEARCH AS:
