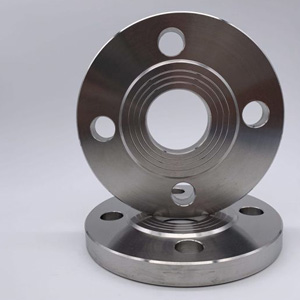

Fitwel Industries LLP is one of the oldest manufacturers, suppliers & exporter of High Nickel Alloy Slip-on or SORF Flanges, which are manufactured using superior grade of Steel Alloy like Nickel Alloy, Monel, Inconel, Copper Nickel/cupro-nickel, Alloy 20 Steel, SMO 254, Incoloy SORF Flanges. These Monel Slip on flanges are most durable and manufacture to fit in different sizes of Pipes. The Alloy 20 slip-on flange or SORF Flanges is slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. SMO 254 Slip-on Flanges or SORF Flanges are at the low-cost end of the scale and do not require high accuracy when cutting the pipe to length. This Copper Nickel slip-on Flanges or SORF Flanges can sometimes have a boss or hub and can be made with a bore to suit either pipe or tube.
We are well known for the guaranteed fast delivery of the Nickel Alloy Slip-on flanges/SORF flange anywhere in the India & Gulf as well as Europian countries. The main reason being we have excellent warehousing and storage facilities for both finished and semi-finished goods in the heart of the Financial capital of India (Mumbai). Copper Nickel Flange, Inconel 600, Incoloy 800 Flanges, Monel 400 Flanges, ALLOY 20 flanges are best fitted to the indeed requirements of Engineers & World's Best Project Consultants. We mostly deliver our Cupro-nickel Slip-on flanges to the following Industries such as Equipment Manufacturing, Mining, Oil Refineries, Chemical manufacturing, Utilities and Transportation, and Industrial Construction as well as pipelines of gas industries and oil refineries
ASME B16.5 Slip On Flanges Specification :
Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2" (15 NB) to 48" (1200NB)
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
BS : BS4504 , BS4504, BS1560, BS10
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
ANSI B16.47 Slip On Flanges Material & Grades:
Nickel Alloy Slip On Flanges :ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020).
Copper Alloy Steel Slip On Flanges :ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200.
ANSI B16.47 Slip On Flanges Material & Grades:
Duplex & Super Duplex Steel Slip On Flanges :ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Dimensions of Class 150 Slip-On Flanges
All dimensions are in "mm" unless noted otherwise.
NPS 1/2 - I.D. 22.3
| CLass |
150 |
300 |
600 |
900 |
1500 |
2500 |
DIA
A |
30 |
38 |
38 |
38 |
38 |
... |
DIA
D |
90 |
95 |
95 |
120 |
120 |
... |
THK
B |
9.6 |
12.7 |
14.3 |
22.3 |
22.3 |
... |
| 11.2 |
14.3 |
20.7 |
28.7 |
28.7 |
... |
DIA
G |
35.1 |
35.1 |
35.1 |
35.1 |
35.1 |
... |
DIA
K |
60.3 |
66.7 |
66.7 |
82.6 |
82.6 |
... |
| H |
14 |
21 |
22 |
32 |
32 |
... |
| 15.6 |
22.6 |
28.4 |
38.4 |
38.4 |
... |
NO.
L |
4 |
4 |
4 |
4 |
4 |
... |
DIA
L |
15.9 |
15.9 |
15.9 |
22.2 |
22.2 |
... |
| Stud Bolts Diameter x Length |
DIA
(in) |
1/2 |
1/2 |
1/2 |
3/4 |
3/4 |
... |
Len
mm |
55 |
65 |
75 |
110 |
110 |
... |
"Nominal
Pipe Size":- 1/2-
3/4-
1-
1.1/4-
1.1/2-
2-
2.1/2-
3-
3.1/2-
4-
5-
6-
8-
10-
12-
14-
16-
18-
20-
24
"Outside
diameter of
flange
(D)":- 88.9-
98.6-
108-
117.3-
127-
152.4-
177.8-
190.5-
215.9-
228.6-
254-
279.4-
342.9-
406.4-
482.6-
533.4-
596.9-
635-
698.5-
812.8
"Thick of
flange
(B)":- 11.2-
12.7-
14.2-
15.7-
17.5-
19.1-
22.4-
23.9-
23.9-
23.9-
23.9-
25.4-
28.4-
30.2-
31.8-
35.1-
36.6-
39.6-
42.9-
47.8
"Diameter of
Hub at base
(A)":- 35.1-
42.9-
50.8-
63.5-
73.2-
91.9-
104.6-
127-
139.7-
157.2-
185.7-
215.9-
269.7-
323.9-
381-
412.8-
469.9-
533.4-
584.2-
692.2
"Diameter of
raised face
(G)":- 30.2-
38.1-
49.3-
58.7-
65-
77.7-
90.4-
108-
122.2-
134.9-
163.6-
192-
246.1-
304.8-
365.3-
400.1-
457.2-
505-
558.8-
663.4
"Length
thru Hub
(H)":- 15.7-
15.7-
17.5-
20.6-
22.4-
25.4-
28.4-
30.2-
31.8-
33.3-
36.6-
39.6-
44.5-
49.3-
55.6-
57.2-
63.5-
68.3-
73.2-
82.6
"Dia of
bore
(ID)":- 22.4-
27.7-
34.5-
43.2-
49.5-
62-
74.7-
90.7-
103.4-
116.1-
143.8-
170.7-
221.5-
276.4-
327.2-
359.2-
410.5-
461.8-
513.1-
616
"No of
holes":- 4-
4-
4-
4-
4-
4-
4-
4-
8-
8-
8-
8-
8-
12-
12-
12-
16-
16-
20-
20
"Dia of
holes
(L)":- 15.7-
15.7-
15.7-
15.7-
15.7-
19.1-
19.1-
19.1-
19.1-
19.1-
22.4-
22.4-
22.4-
25.4-
25.4-
28.4-
28.4-
31.8-
31.8-
35.1
"Dia of
bolts":- 1/2-
1/2-
1/2-
1/2-
1/2-
5/8-
5/8-
5/8-
5/8-
5/8-
3/4-
3/4-
3/4-
7/8-
7/8-
1-
1-
1-1/8-
1-1/8-
1-1/4
"Diam of
bolt circle
(K)":- 60.5-
69.9-
79.2-
88.9-
98.6-
120.7-
139.7-
152.4-
177.8-
190.5-
215.9-
241.3-
298.5-
362-
431.8-
476.3-
539.8-
577.9-
635-
749.3
"Approx
weight
kg":- 0.5
1-
1-
1-
1-
2-
3-
4-
5-
6-
7-
9-
14-
20-
29-
41-
44-
59-
75-
100
