Fitwel Industries LLP involved in providing a wide range of Titanium & Hastelloy Stub Bend Buttweld Pipe Fittings that is manufactured using high quality of raw material by means of industry norms. Keeping in mind diverse requirements of our clients we are involved in offering a wide range of these fittings. We are indulged in crafting of stub ends to serve the functionality to the best. Stub ends manufacturers are installed in pairs and mated together with two lap joint flanges. Having developed in comprehensive range, our offered fittings are widely used in various commercial establishments. Our offered fittings are widely demanded in ship building, aircraft & aerospace industries. Our products are made available in numerous sizes and grades to choose from.
If you are seeking out a company that can offer you a collection of the best-in-class Buttweld products and services all under one roof? Look no further. Fitwel Industries LLP extends a product line that is impeccable and unique with a complete customer satisfaction experience. We are manufacturers, suppliers, and exporters of Titanium Long Stub Ends, Hastelloy Long Stub Ends which are the opposite of Short Stub Ends. They have a longer hub length. These stub ends come in different types to administer convenient and conducive joinings at pipe connections. Titanium Stub Ends & Hastelloy Stub Ends are a little expensive little less used within the flanging industry. Choose us for ANSI B16.9 Stub Ends that operate in low-pressure, trivial industrial applications.
Stub ends manufacturer India are mechanical joints that comprises of two components: The Stub End, which essentially a short length of pipe, which has one end that is flared outwards and the other end prepared to be welded to pipe of the same Nominal Pipe Size (NPS), material and of a similar wall thickness.
There are mainly two types of Sub Ends i.e. (i)Short Stub Ends & (ii)Long Stub Ends
We are a premium manufacturer of high-quality range of ANSI/ASME B16.9 Buttweld Short Stub Ends these are manufactured under the expert guidance of our experienced team. We believe in building a relationship with the client by offering the best quality product at a reasonable price. We ensure that all the products deliver on time with great service. This Short Stub End has amazing features such as sturdy, durable, and corrosion resistance. We supply the best product that is ANSI/ASME B16.9 Buttweld Short Stub End of varied size and standard.
We are a premium manufacturer of high-quality range of ANSI/ASME B16.9 Buttweld Long Stub End that is manufactured in all standard dimensions. Our high-quality Long Stub End Butt weld pipe fittings are tested and verified for durability, accuracy, and precision. We are the provider of Buttweld Long Stub End that are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & shipbuilders. Long Stub Ends are introduced in pairs and mated together with two Lap Joint Stubends. The surface of the stub end has a phonographic serrated gasket surface which prevents outflow at the joint.

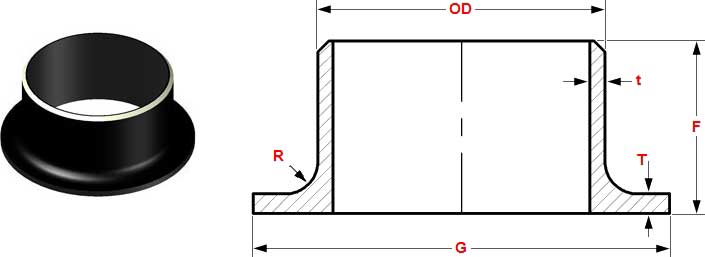

NPS | OD | T | G | F | R Type A |
R Type B |
1/2 | 21.3 | 2.11 | 34.9 | 50.8 | 3.05 | 0.76 |
3/4 | 26.7 | 2.11 | 42.9 | 50.8 | 3.05 | 0.76 |
1 | 33.4 | 2.77 | 50.8 | 50.8 | 3.05 | 0.76 |
1¼ | 42.2 | 2.77 | 63.5 | 50.8 | 4.83 | 0.76 |
1½ | 48.3 | 2.77 | 73 | 50.8 | 6.35 | 0.76 |
2 | 60.3 | 2.77 | 92.1 | 63.5 | 7.87 | 0.76 |
2½ | 73 | 3.05 | 104.8 | 63.5 | 7.87 | 0.76 |
3 | 88.9 | 3.05 | 127 | 63.5 | 9.65 | 0.76 |
3½ | 101.6 | 3.05 | 139.7 | 76.2 | 9.65 | 0.76 |
Nominal Pipe Size | 1/2 up to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 |
Outside Diameter at Welding End (OD) | 0.8 | 0.8 | 0.8 | + 1.6 - 0.8 |
+ 2.29 - 0.76 |
+ 3.05 - 0.76 |
Overall Length (F) | 1.6 | 1.6 | 1.6 | 1.6 | 2 | 2 |
Outside Diameter of Lap (G) | + 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 1.6 |
+ 0 - 1.6 |
Thickness of Lap (T) | + 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
+ 1.52 - 0 |
Fillet Radius of Lap (R) | + 0 - 0.76 |
+ 0 - 0.76 |
+ 0 - 1.6 |
+ 0 - 1.6 |
+ 0 - 1.6 |
+ 0 - 1.6 |
Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise indicated.
Size : 1/2"NB TO 36 "NB IN
Standards : ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Type: Seamless / ERW / Welded / Fabricated
Form : Long Stub Ends, Short Stub Ends, Lap Joint Stub Ends
Stainless Steel Buttweld Stub ends : ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Buttweld Stub ends : ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Buttweld Stub ends : ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Buttweld Stub ends : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Buttweld Stub ends : ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
